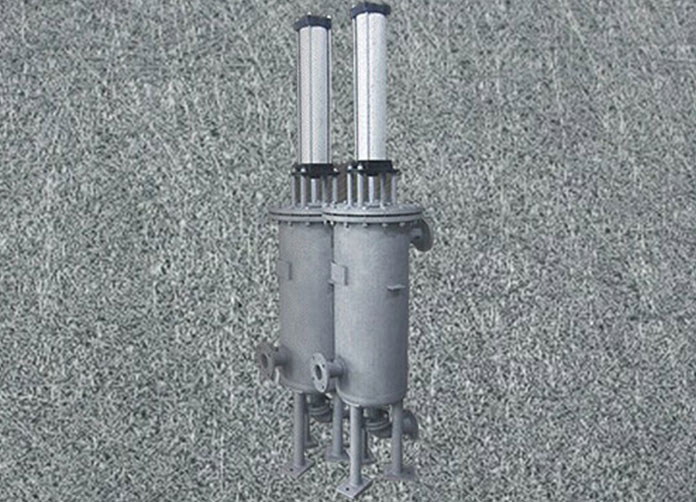

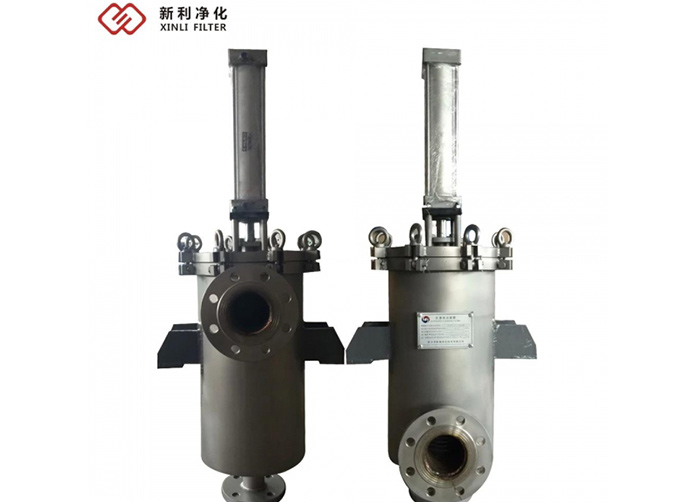

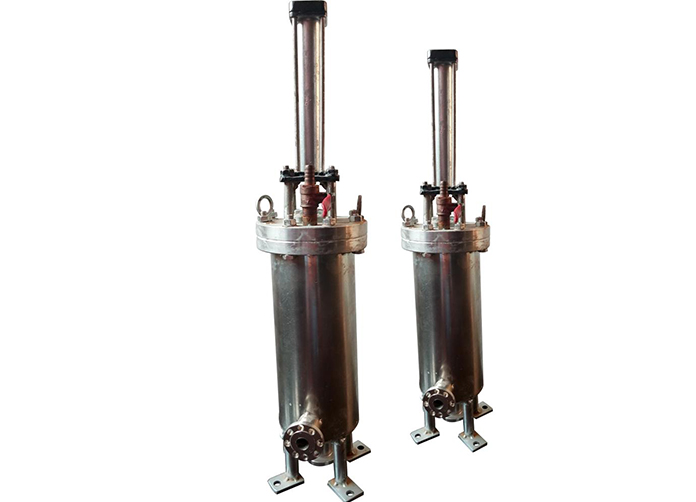

Disk type scraper self-cleaning filter


With automated control system monitoring the filter operation, cleaning is accomplished by a disc. This is operated by pneumatic cylinder.

Product Introduction

The disk type scraper self-cleaning filter is suitable for viscous chemical material .The product can filter and discharge residue automatically and continuously. Moreover,it can filter out the cleaning liquid and recycle the valuable solid particles in liquid when the system is working. The filter can self-clean automatically at regular intervals through automatic or manual control, and can work automatically in filteration, self-cleaning and discharge.

Internal Structure:




Working Principle:


With automated control system monitoring the filter operation, cleaning is accomplished by a disc. This is operated by pneumatic cylinder. When cartridge filter is blocked up by impurities and the differential pressure reaches a certain value, then PLC inspects the signal and sends out the indication. A spring-loaded cleaning disc moves up and down inside the cartridge filter and removes collected contaminants. The processed liquid flows from top to bottom, and from inside of the cartridge to outside. The contaminants that are collected on the screen are easily removed and discharged to the collection chamber. The residue can be removed quickly and  throughly.


Highly viscous material filtration like crude oil, grease and lube oil etc.



 Our Services:

1)  Pre-sale service:

Offer you the best price of the products you need.

2)  Medium-sales service:

All filter element will be test before delivery .

3)  After-sales service:

Technical support for any time.

If the products have the quality question,we will return make the new products to you .

4)  More Service:

1.We can delivery the products by sea ,by air ,or the express, such as DHL ,TNT ,UPS , SF,EMS and so on .

2.Our customer can pay for by TT, Western Union ,or paypal .

3.If the amount is large ,customer can 30%T/T as down payment, the remaining 70% need to be payed when goods are ready to ship.


1.Q: Where is your factory located?
A:Our factory is located in Xinxiang City, Hennan Province, China.
2.Q: You are a factory, trading company or a third party?
A: We are a factory, and we start our factory & production from 2010.

3.Q: What is your minimum quantity, can you send me sample?
A: We are honored to offer you samples. Our minimum ordered quantity is 1 piece.

4.Q:What are your generally modes of transportation ?

A:Generally  by air, sea or Express.
