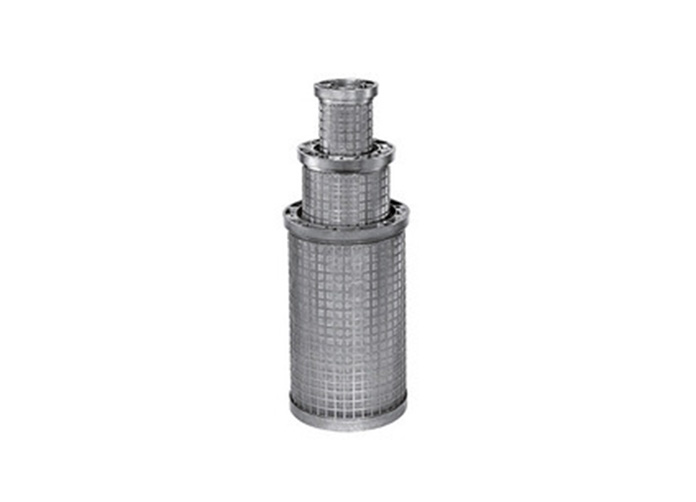

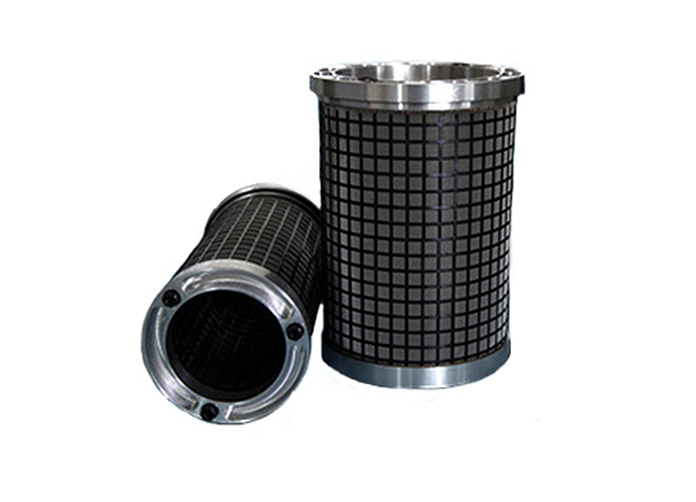

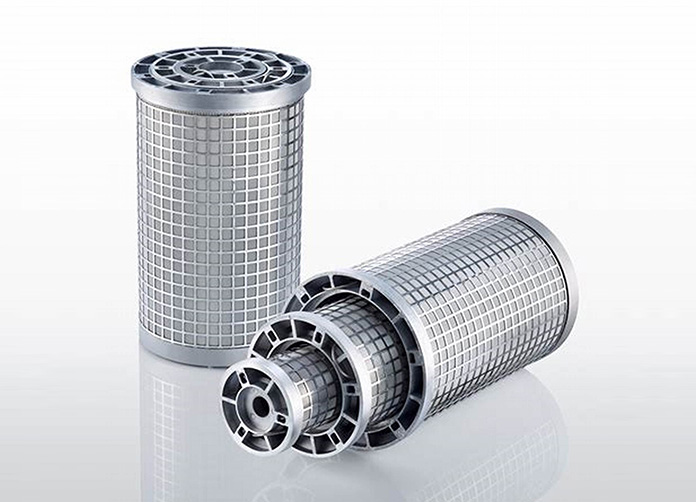

Multi mantle filters consist of several cylindrical filter cartridges placed inside each other.Stainless steel mesh with variable micron ratings between 10 and 2000 micrometres is used as a standard filter material. Like the mesh, the inner support tubes for the elements are also made of stainless steel.
Send us email
filter@xinlifilters.comCall us
+86-15836052206Multi mantle filters consist of several cylindrical filter cartridges placed inside each other.Stainless steel mesh with variable micron ratings between 10 and 2000 micrometres is used as a standard filter material. Like the mesh, the inner support tubes for the elements are also made of stainless steel.
Stainless Steel Multi Mantle Filter Element Application:
Multi-mantle filter elements are generally used in marine applications for filtering fuels and lubricants as well as water. The elements are also used in the processing industry for purifying water, oils, coolants and chemicals.
| Model | DN(mm) | Flow(L/min) | Accuracy(um) | Pressure(MPa) | Initial(MPa) | Max(MPa) |
| XLLX-171*464 | 65 | 400 |
20 25 30 40 80 120 |
1.6 | <=0.1 | 0.35 |
| XLLX-171*760 | 80 | 600 | ||||
| XLLX-171*265 | 65 | 400 | ||||
| XLLX-171*464 | 80 | 600 | ||||
| XLLX-231*464 | 100 | 1000 | ||||
| XLLX-420*760 | 150 | 4000 | ||||
| XLLX-355*464 | 150 | 2500 | ||||
| XLLX-355*760 | 200 | 4000 |
