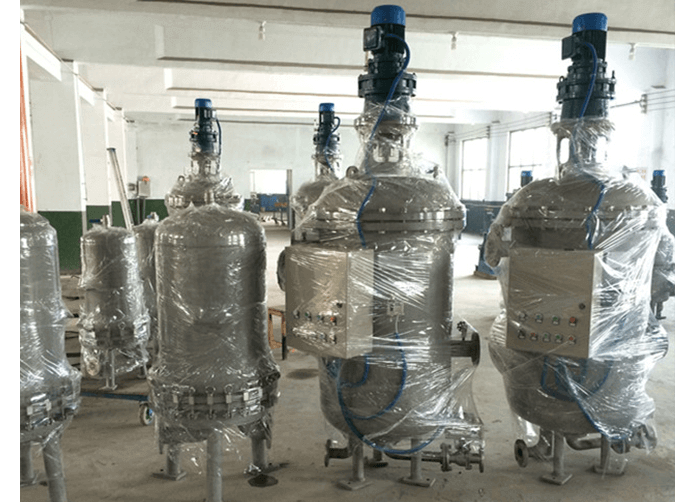

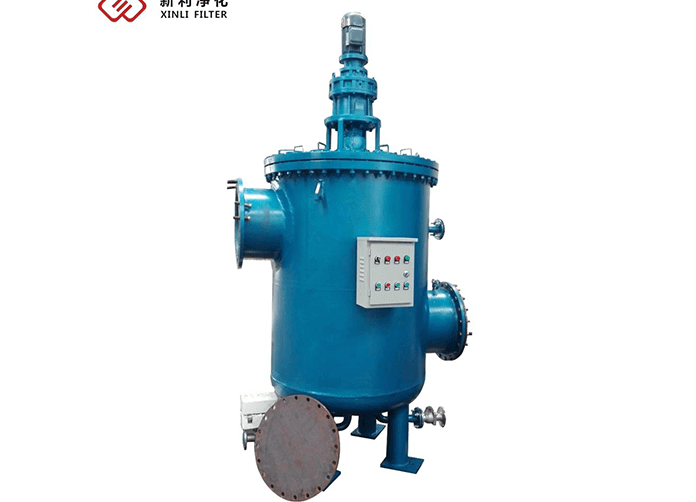

Automatic Self-cleaning Filter(Ultrasonic Method)

PLC program control;

The filter cartridge is cleaning one by one;

High strength and corrosion resistance;

Big effective filter area, low backwash frequency, small resistance loss;

Perfect alarm control to guarantee safe and effective operation;

Unique design of mesh structure and cleaning control, to make the backwash flow bigger, remove particles more thoroughly.

Product Introduction

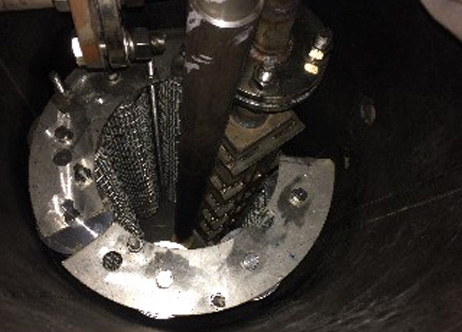

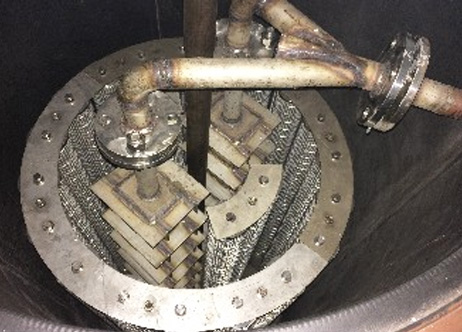

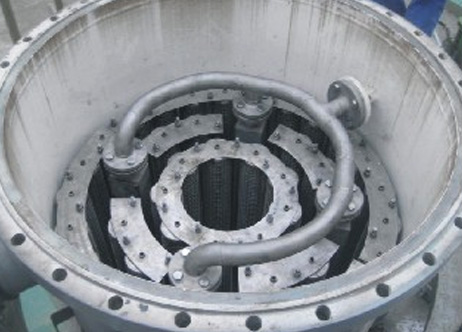

The filter is made of filter housing, filter unit, the structure of the back flush, ultrasonic module, differential pressure controller and control segment etc.

Working Principle:

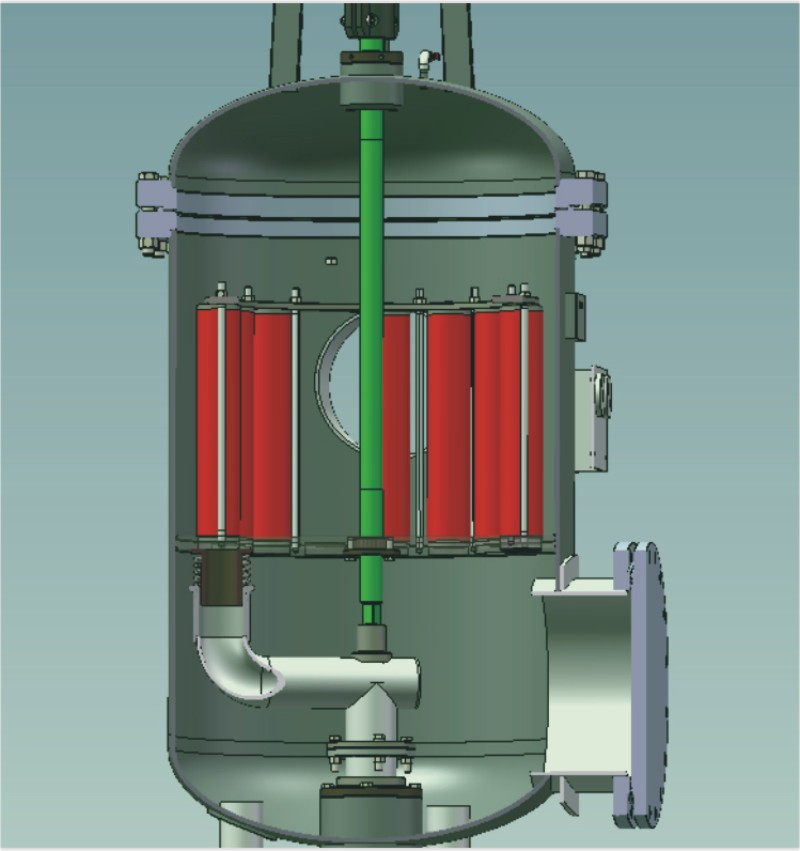

The separator plate in the housing which there are several filter cartridges, divided into turbid fluid cavity and clean fluid cavity, the original fluid enter into the turbid fluid cavity, part of the larger particles gravitational settle at the bottom of the device (regular exclusion), most of the particles enter into the filter cartridge’s inner, the impurities which is larger than the filter rate is trapped on the cartridge inside, the differential pressure between the inlet and outlet will enlarge, when the trapped impurity increase gradually.

As the differential pressure reach a certain number, the PLC automatic back flush construction will start to work, the ultrasonic module element produces high frequency oscillation for more effective cleaning, removal the cartridge’s filter cake in turn.

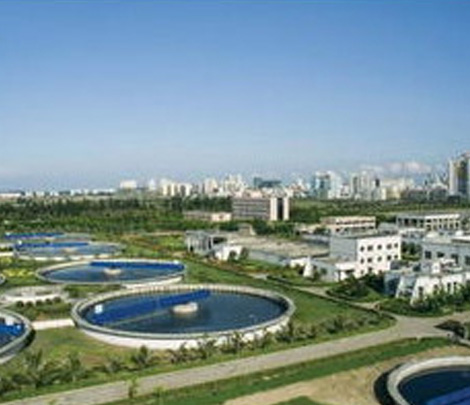

Water Treatment:

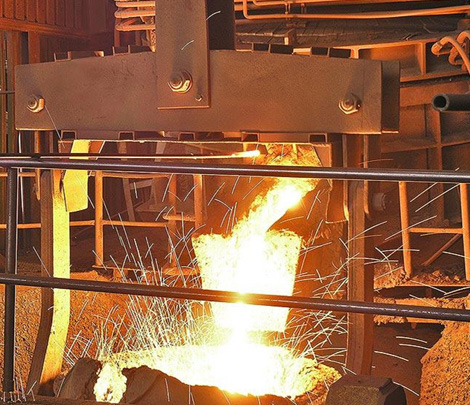

Steel Business:

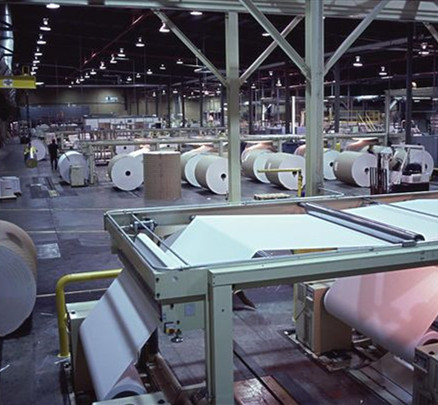

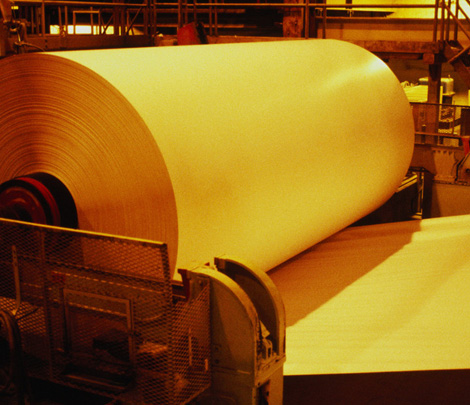

Paper Manufacturing:

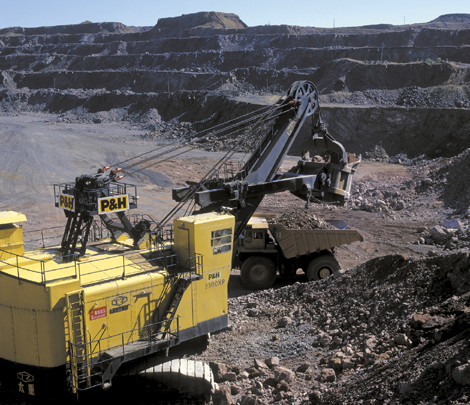

Mining Industry:

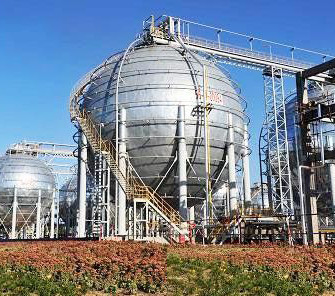

Petrochemical Industry:

Machinery Industry:

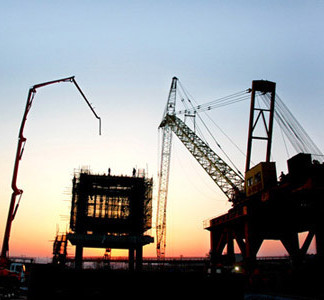

Municipal Construction:


Our Services:

1)  Pre-sale service:

Offer you the best price of the products you need.

2)  Medium-sales

All filter element will be test before delivery .

3)  After-sales service:

Technical support for any time.

If the products have the quality question,we will return make the new products to you .

4)  More Service:

1.We can delivery the products by sea ,by air ,or the express, such as DHL ,TNT ,UPS , SF,EMS and so on .

2.Our customer can pay for by TT, Western Union ,or paypal .

3.If the amount is large ,customer can 30%T/T as down payment, the remaining 70% need to be payed when goods are ready

to ship.


Company Information:



1.Q: Where is your factory located?
A:Our factory is located in Xinxiang City, Hennan Province, China.
2.Q: You are a factory, trading company or a third party?
A: We are a factory, and we start our factory & production from 2010.

3.Q: What is your minimum quantity, can you send me sample?
A: We are honored to offer you samples. Our minimum ordered quantity is 1 piece.

4.Q:What are your generally modes of transportation ?

A:Generally by air, sea or Express.
