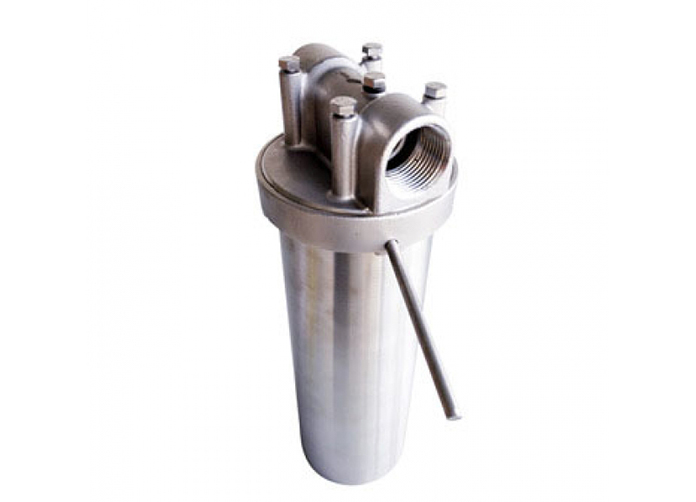

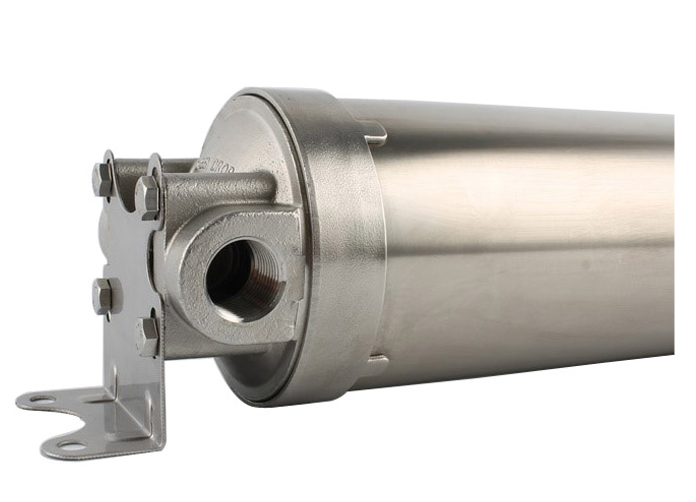

Single filter stainless steel mesh filter for juice/beverage filtration

(1) The precision casting top cover has high precision, less welds, and stable pressure resistance.

(2) The top cover directly seals the filter cartridge to ensure no leakage during the filtration process.

(3) The inside and outside surfaces of the cylinder are sandblasted, and the inner side is smooth and easy to clean.

(4) The filter is designed with reference to ASME.

Technical parameter:

Material: SUS304,SUS316L

Design pressure: 12bar/120℃

Interface type: JIS/DIN/ANSI Flange(standard),Socket optional

Design flow: 6-40mᶟ/h

Seal type: O type seal ring

Seal material: Buna,EPDM,Viton,Silicone

Surface treatment: Sandblasting(standard) or Polishing

Installation leg adjustable available

Heating jacket optional for high viscosity liquid
