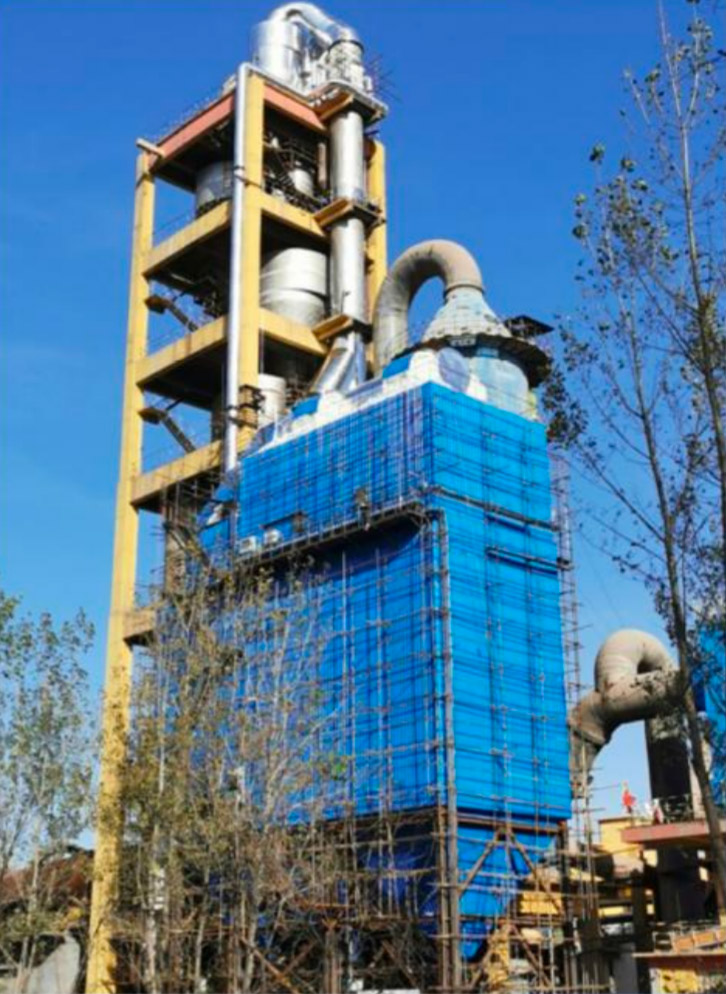

Case: A 1350-ton alumina roasting furnace renovation project of an aluminum industrylimited company adopts the dust removal process of pure bag. The amount of flue gastreated is 380000m3/h, the dust concentration is less than 100g/m3, and the finalemission concentration is required to be less than 10mg/m3. The actual operation resultis that the pressure difference of the filter bag is less than 600pa, and the dustconcentrationis less than 10mg.
| Project | Unit | Date |
| Flue Gas Purification Treatment Air Volume | M3/h | 380000 |
| Inlet dust concentration | g/m3 | <100 |
| Metal filter bag specifications | mm | OD130x6000/4000 |
| Filter wind speed | m/min | <1.0 |
| Cleaning pressure | Mpa | 0.4-0.6 |
| Flue gas temperature | °C | 160 |
| Instantaneous maximum temperature | °C | ≤450 |
| Filter bag resistance | Pa | Initial<500,finally<800 |
| Filter bag life | Year | ≥5 |
| Emission standards | mg/m3 | <5 |
