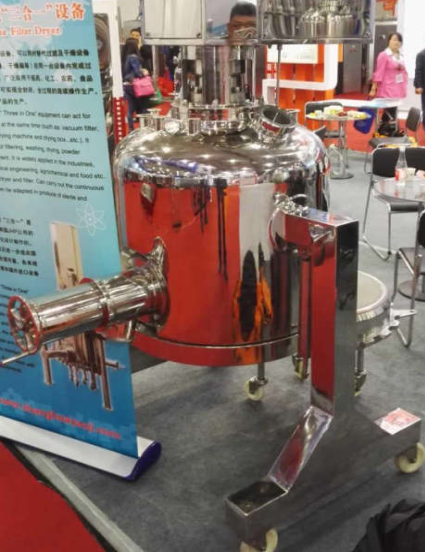

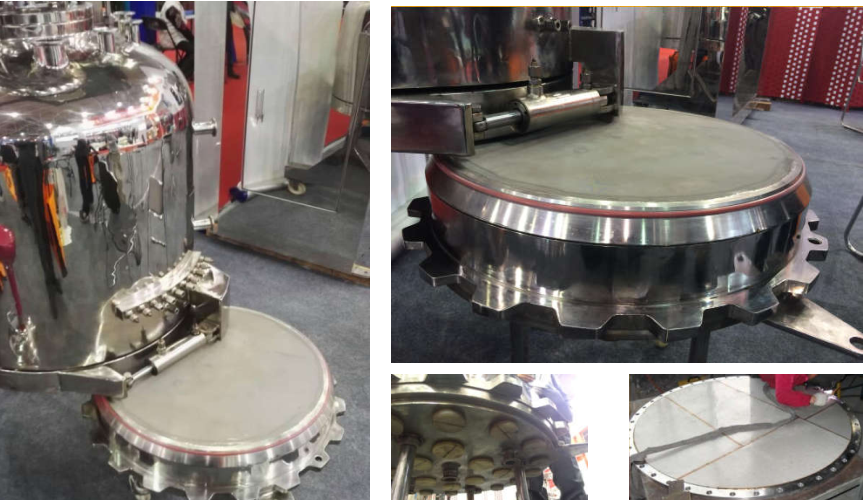

Filtration, washing and drying equipment(referred to as three-in-one equipment) is a filtration equipment integrating filtration, washing and drying.

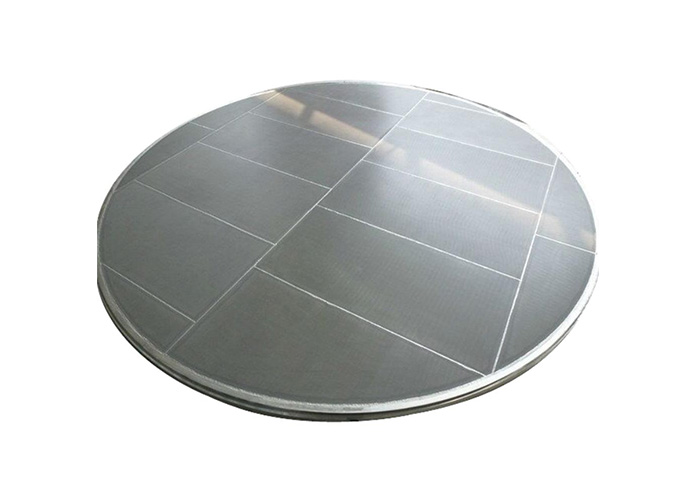

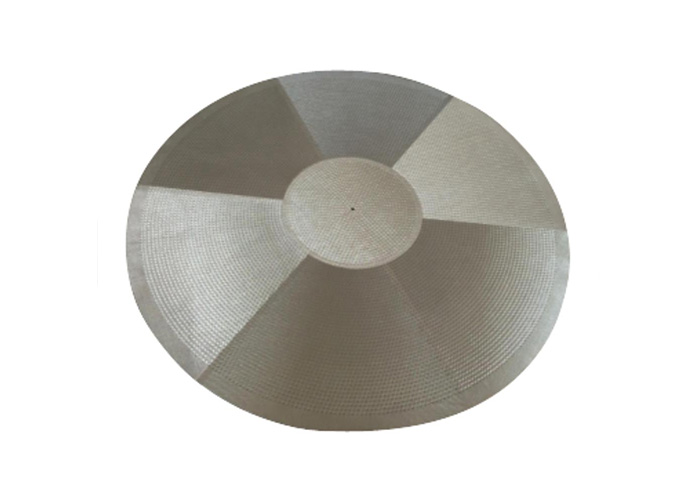

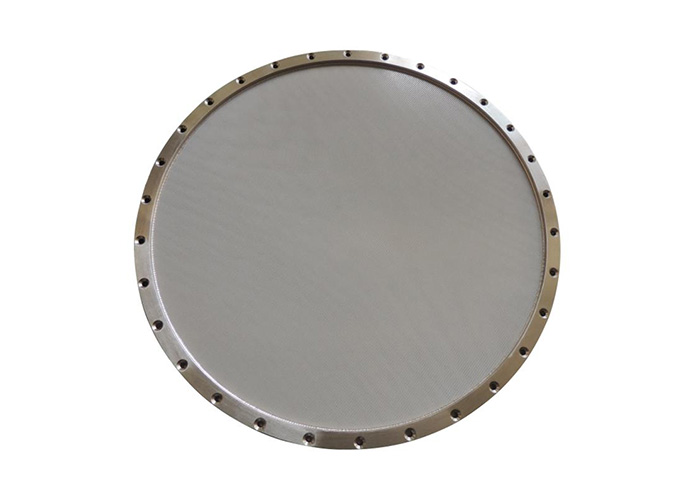

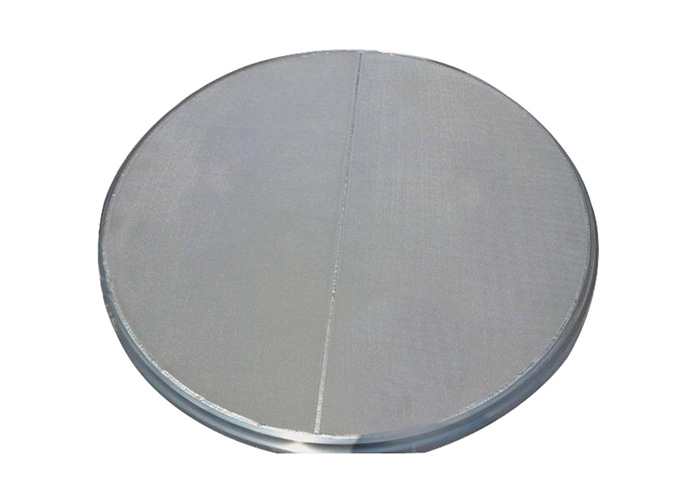

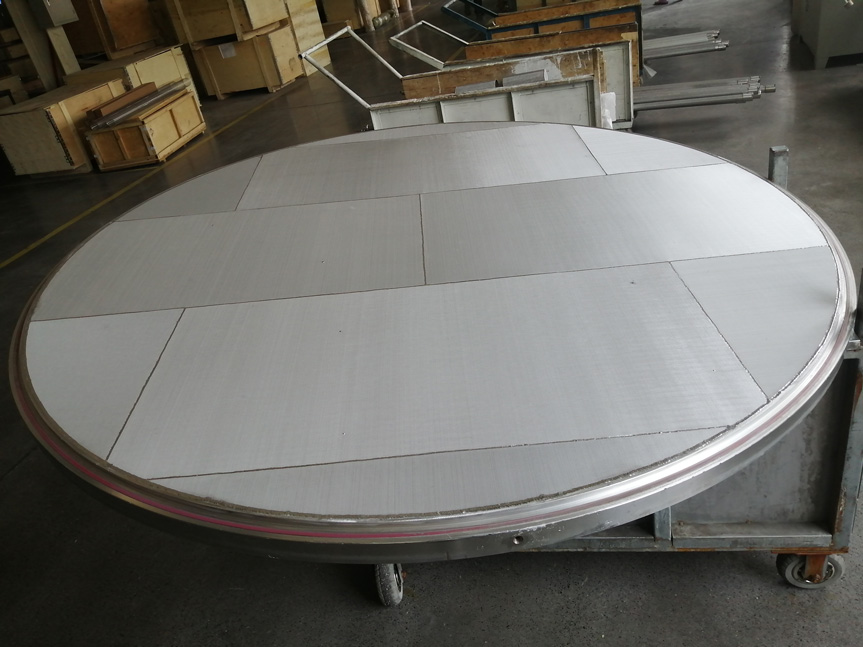

Multilayer sintered screen plays the role of filtering and supporting material in the three-in-one filtration equipment.
The three-in-one filter plates have high requirements on the sintered screen. The aperture should be uniform, the screen surface should be flat, and the flatness should not be 2mm on the surface of 1000x1000. No pits, foreign matter or contamination shall be allowed on the surface. No foreign matter should fall off, and ultrasonic cleaning should be done thoroughly.
The Multilayer sintered screen mostly adopts six-layer sintered mesh, that is, the thickness of sintering mesh is 3.5mm, the micron is mostly 5~25microns.
Notice: the micron and thickness can be made according to requirements.
The metal microporous filtration material is made of irregular stainless steel powder processing ,formed by isostatic pressing, molding, extrusion molding. It has good permeability filtration performance and high filtration precision, and a certain strength and toughness, can be used under the high temperature of 300 ℃.>> Learn More
The Pleated Stainless Steel Sintered Mesh Star Tray Filter Cartridge not only has the high strength of sintering wire mesh, stable filtration precision, but also increases the filter area of sintering mesh filter, which can meet the high requirement of industrial filtration.>> Learn More
