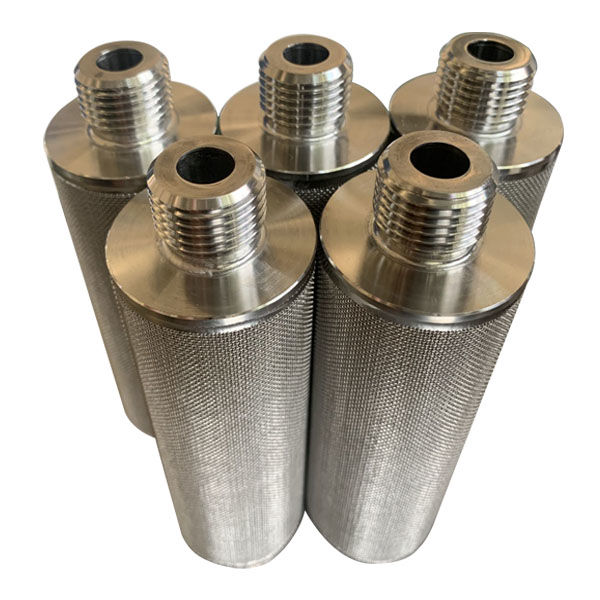

Vacuum feeder is a conveying equipment, in the operation process, the need for negative pressure pneumatic conveying to transport powder materials, an important part of the vacuum feeder is the filter element. The metal filter element has a higher service life and can be used multiple times after cleaning.
High quality and stable filter elements can save a certain cost, and can greatly improve work efficiency to ensure the smooth progress of production.Adapter: threaded, 222,226, etc
Type:Vacuum Feeder Sintered Filter
Material:stainless steel sintered,304,316L
Length:220,410,600mm or custom.
Diameter:50,60mm or custom.
Filtration rate: 1,2,5,10,15,20,30,40,75um
Adapter: threaded, 222,226, etc
Features and advantages:
1. The filtration grade is high, and the precision of the pulverizing system directly affects the pulverizing efficiency. Be sure to choose the power according to the particle size, otherwise the powder material enters the vacuum pump, causing the vacuum pump failure or directly into the atmosphere.
2. The filtration area can be customized. The filtration area of the conveying system directly affects the stability of the powder feeding system. The design that does not match the ventilation area is easy to cause the clogging and dust removal of the conveying equipment, and even the combustion of the vacuum pump.
3. High corrosion resistance, the use of air is the stability of the entire production system, and high temperature and corrosion resistance are selected according to the characteristics of the material. The food industry must use food grade filters.
4. Not easy to fall off, no foreign matter. The unified production process directly affects the operation of the whole system. Regardless of whether the production process is strictly controlled, when using the powder conveying system, foreign matter or automatic shedding is strictly prevented.
The metal microporous filtration material is made of irregular stainless steel powder processing ,formed by isostatic pressing, molding, extrusion molding. It has good permeability filtration performance and high filtration precision, and a certain strength and toughness, can be used under the high temperature of 300 ℃.>> Learn More

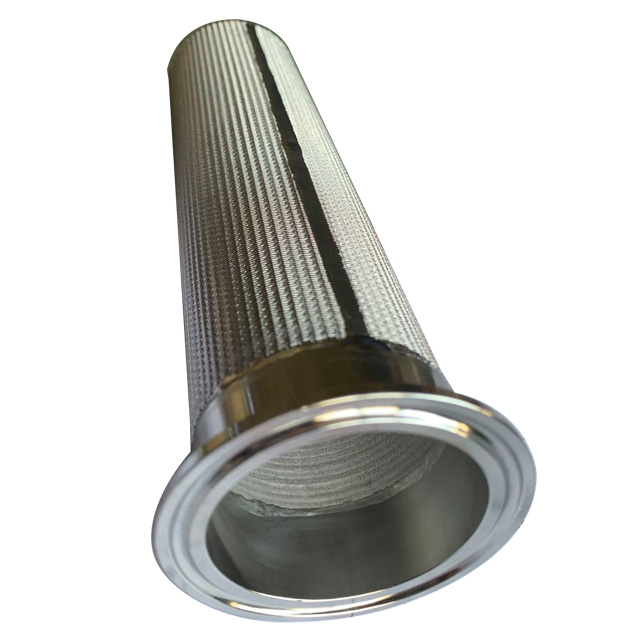

The Pleated Stainless Steel Sintered Mesh Star Tray Filter Cartridge not only has the high strength of sintering wire mesh, stable filtration precision, but also increases the filter area of sintering mesh filter, which can meet the high requirement of industrial filtration.>> Learn More
multi-layer sintered woven mesh is composed of multi-layer stainless steel wire mesh(maybe 3-layer,4-layer,7-layer,8-layer,10-layer, etc.), which is special canlendering and sintering in vacuum oven, to create a new filter material with high strength and rigidity.>> Learn More
Standard sintered five-layer mesh consists of the protective layer, the filter layer, the dispersion layer, and two reinforcing layers. It provides excellent performance such as uniform and stable precision and high strength, so it is ideal filter medium for applications requiring high compressive strength and uniform filtering particle.>> Learn More
